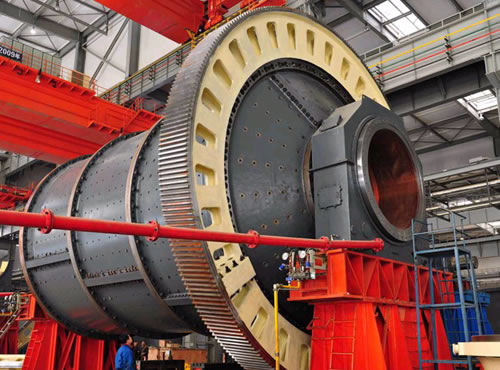

Autogenous Mill
Description of Autogenous Mill:
This autogenous mill is typically designed to grind ores and other particulate matter in various fields like building material field, chemical industry, metallurgy industry, refractory material sector, and so on. Besides, it can also be used to grind materials with little iron content.
As its name suggests, it fan finish impacting and grinding materials totally by itself. So it is quite easy to operate. Moreover, it is easy and convenient to maintain, and is highly efficient.
Parameters of Autogenous Mill:
| Cylinder diameter (mm) | Cylinder length (mm) | Effective area of cylinder (m3) | Rotating speed at work (r/min) | Power of main motor (kw) |
| 4000 | 1600-3600 | 19-42 | 16.2 | 240-540 |
| 4500 | 1800-4100 | 27-61 | 15.3 | 360-830 |
| 5000 | 2000-4500 | 38-83 | 14.5 | 530-1200 |
| 5500 | 2200-5000 | 51-112 | 13.8 | 740-1700 |
| 6100 | 2400-5500 | 69-152 | 13.1 | 1050-2400 |
| 6700 | 2700-6000 | 93-201 | 12.5 | 1500-3300 |
| 7300 | 2900-6600 | 120-264 | 12 | 2000-4500 |
| 8000 | 3200-7200 | 160-347 | 11.4 | 2800-6200 |
| 8600 | 3400-7700 | 197-429 | 11 | 3500-7900 |
| 9200 | 3700-8300 | 246-530 | 10.7 | 4500-10000 |
| 9800 | 3900-8800 | 296-640 | 10.3 | 5600-12500 |
| 10400 | 4200-9400 | 359-770 | 10 | 7000-15400 |
| 11000 | 4400-9900 | 422-909 | 9.8 | 8400-19000 |
| 11600 | 4600-10400 | 492-1064 | 9.5 | 10000-22000 |
| 12200 | 4900-11000 | 580-1246 | 9.2 | 12000-27000 |
Note: Parameters in the form is only for reference, and actual parameters should refer to the singed contract technology.
As a professional manufacturer and supplier of autogenous mill in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as semi-autogenous mill, overflow mill, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need autogenous mil, please don't hesitate to contact us.
