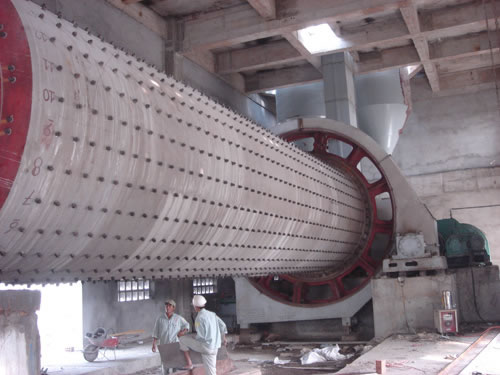

Slag Ball Mill
Description of Slag Ball Mill:
This slag ball mill is a key machine mainly used to process materials from crushing process, and it is widely used in various manufacture industries, like cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Besides, it can also used in dry and wet grinding for all kinds of ores and other grindable materials.
Technical Parameters of Slag Ball Mill:
| Number | Specification (m) | Productivity (t/h) |
Rotating speed of cylinder (r/min) |
Rotating mode | Power (kw) | Speed reducer | Weight (t) | |
| Model | Speed ratio | |||||||
| 1 | φ2.2×6.5 | 18 | 21.4 | Edge | 310 | ZD70 | 5 | 44 |
| 2 | φ2.4×8 | 26-28 | 20.14 | Edge | 570 | ZD80 | 6.3 | 90 |
| 3 | φ2.6×13 | 11-15 | 19.7 | Edge | 1000 | JDX800 | 6.3 | 137 |
| 4 | φ2.8×6.5 | 35 | 18.65 | Edge | 630 | ZD80 | 6.3 | 100 |
| 5 | φ2.8×10 | 45-48 | 18.65 | Center | 800 | MFY80 | 37.5 | 160 |
| 6 | φ3×6.5 | 37 | 18.58 | Edge | 800 | JD800 | 5.6 | 115 |
| 7 | φ3×9 | 40-50 | 18.58 | Edge | 1000 | JD800B | 5.6 | 132 |
| 8 | φ3×12 | 65-75 | 18 | Center | 1400 | JS110-B-F1 | 42.22 | 202 |
| 9 | φ3.2×13 | 72-75 | 17.86 | Edge | 1400 | JDX900 | 6.3 | 237 |
| 10 | φ3.4×7.5 | 70 | 16.9 | Edge | 1000 | ZDA-100 | 6.3 | 167 |
| 11 | φ3.5×10 | 90 | 16.8 | Center | 1250 | Js110-A | 44.1 | 154 |
| 12 | φ4.6×7.5+3.5 | 180 | 15 | Center | 2500 | --- | -- | 272 |
| 13 | φ4.6×10.5+3.5 | 210 | --- | Center | 3550 | JQS3550 | 15.1 | 360 |
Note: Parameters in the form is only for reference, and specific parameters should depend on the signed contract technology.
As a professional manufacturer and supplier of slag ball mill in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as mining mill, quartz sand ball mill, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need slag ball mill, please don't hesitate to contact us.
